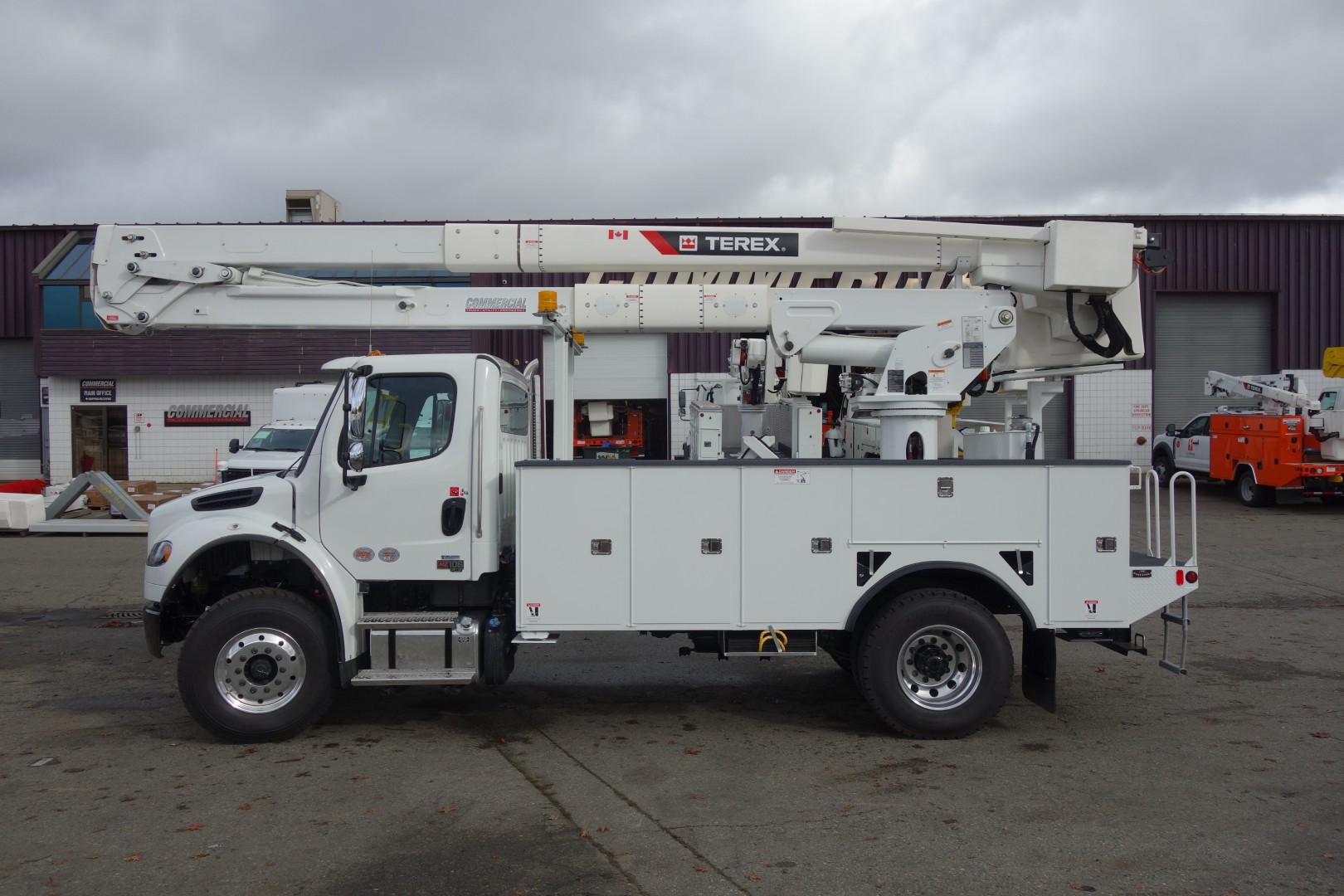

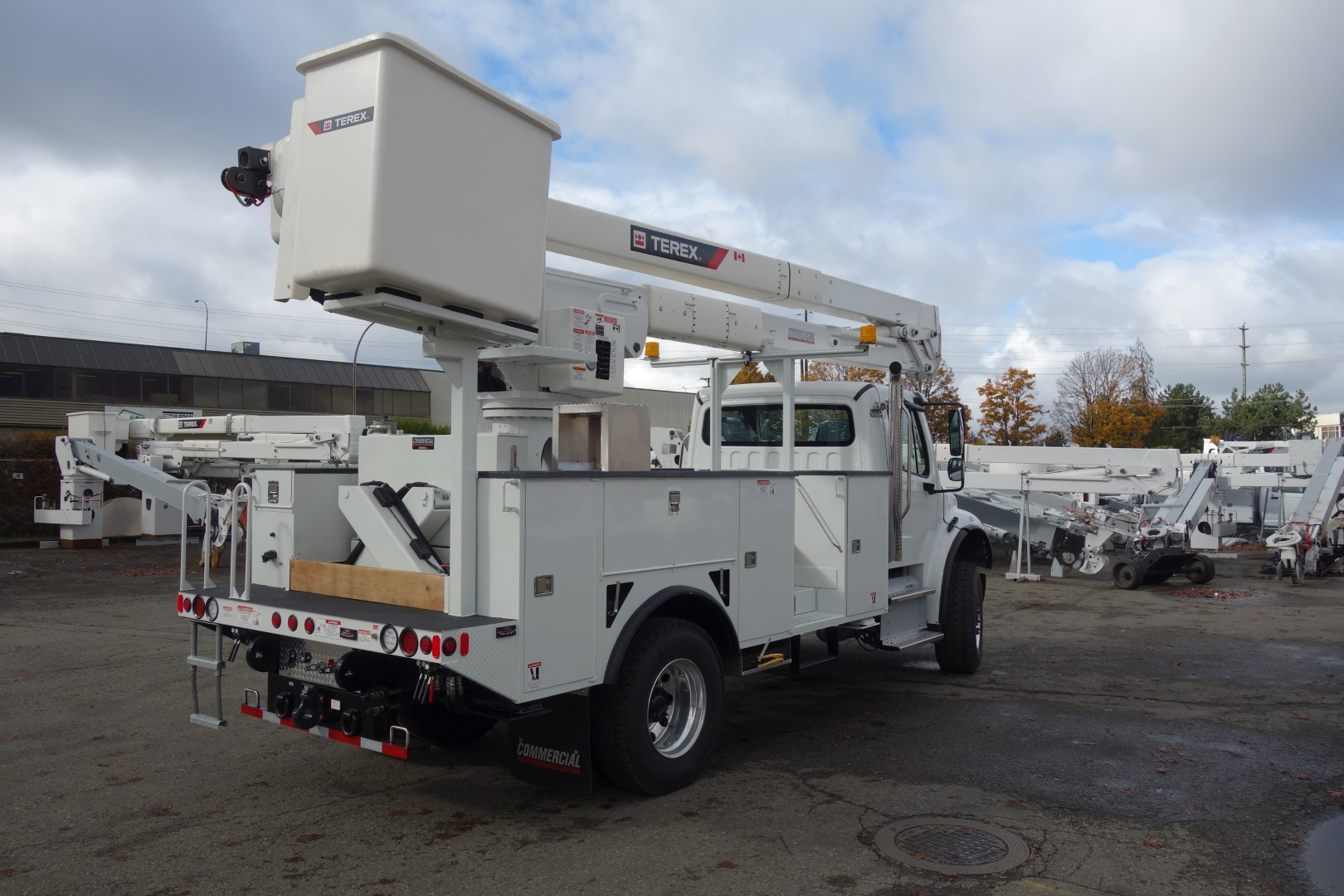

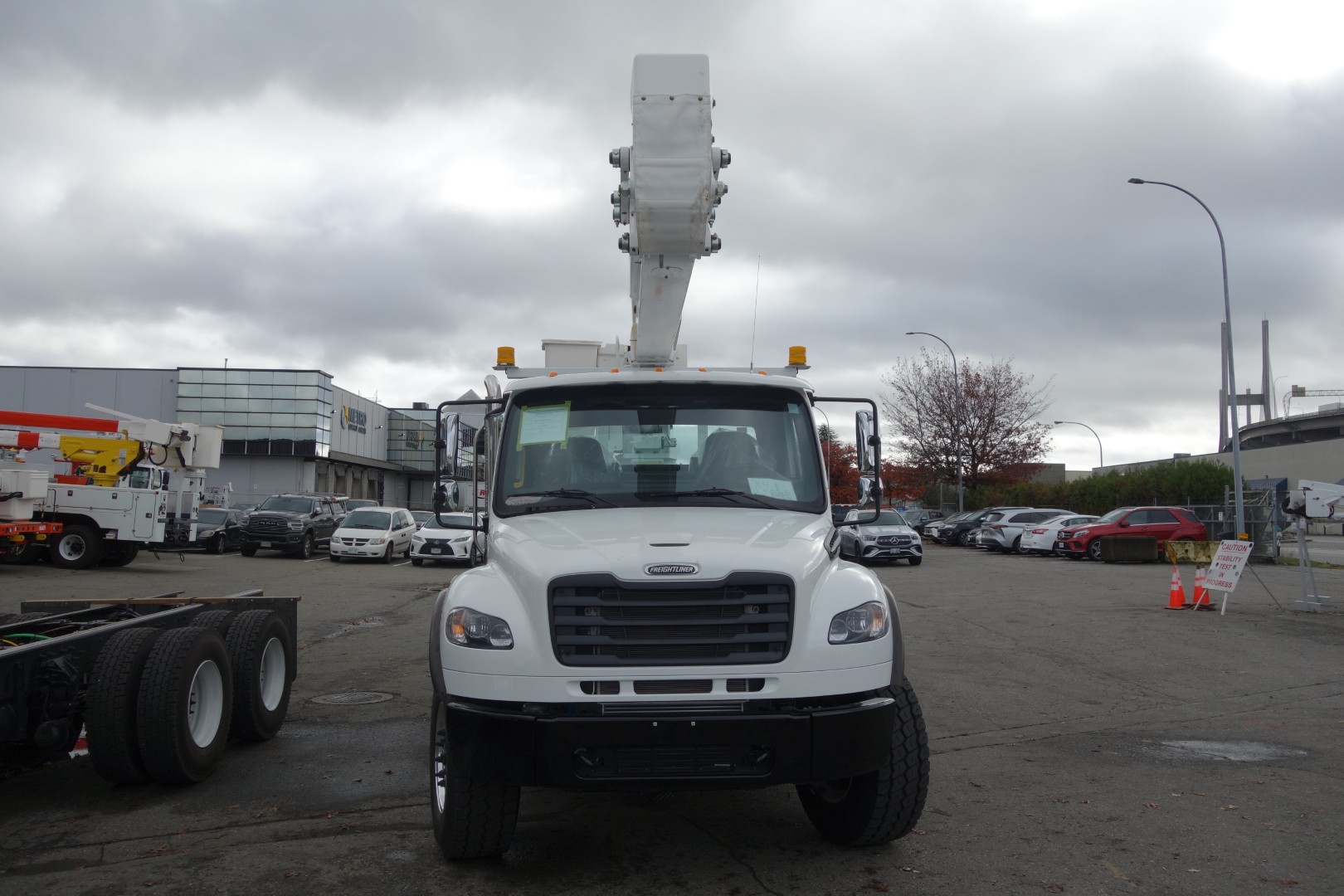

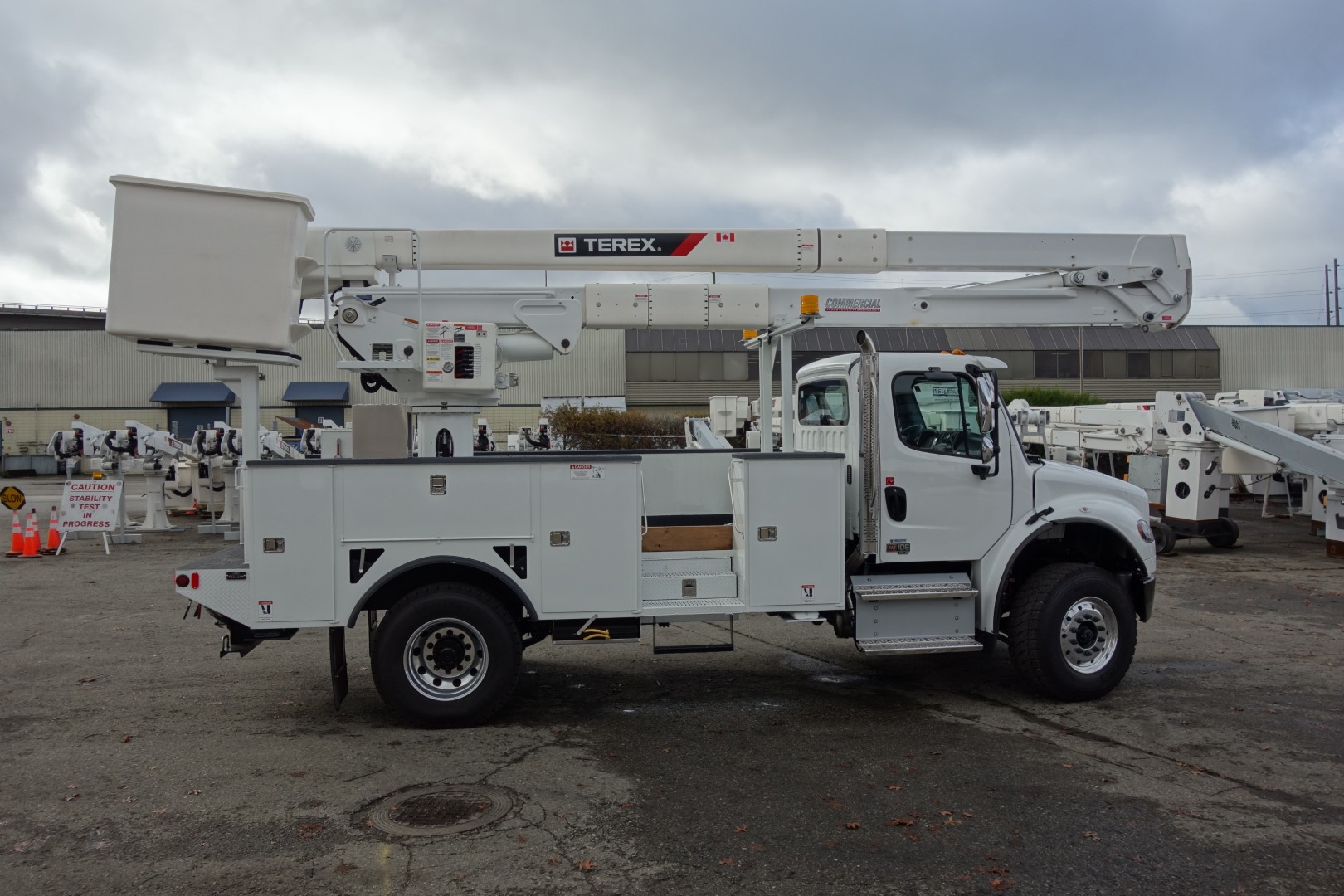

TEREX HI-RANGER HRX55

The Terex Optima Series of distribution aerial features improved boom speed and responsiveness, lower travel height, additional side reach, increased payload, and ground access. The Optima Series maintains the key Hi-Ranger features of being simple, productive, and reliable to complete your most challenging jobs.

EQUIPMENT

• Bottom of Platform 55.0 ft (16.8 m), 57.0 ft with equipped platform lifter
• Working Height 60.0 ft (18.3 m), 62.0 ft with equipped platform lifter
• Non-Overcenter Side Reach at 116° LB Ground Access 42.8 ft (13.0 m)
• Overcenter Side Reach 48.2 ft (14.7 m)
• Bottom of Platform to Ground at 116° with Ground Access 1.3 ft (38 cm)
• Bottom Platform to Ground -1 in. (-2.54 cm)
• Side-Mount 24” x 48” x 42” Two-Person Platform
• Platform Capacity 700 lb (318 kg)
• Control-Plus “3-D” Single Stick Control at Platform
• Hydraulic Platform Rotator
• 24” Platform Lifter (90° Side Mt)
• Hydraulic Articulating Hydraulic Extend Under Load Jib and Winch
• Safety Harness with Attached Lanyard
• Continuous Unrestricted Worm Gear Rotation
• Category “B” Rating Per ANSI A92.2

BODY

• 168″ Steel Line Body 46” High x 94” Wide

CHASSIS

• Freightliner M2 106
• DD8 7.7L 6 CYL 330 HP @ 2200 F -70D RPM, 2600 GOV RPM, 1000 LB-FT @ 1200 RPM
• Allison 3000 RDS Automatic Transmission
• GVWC 35000 lbs
• GCW 70000 lbs
• Driver Controlled Traction Differential
