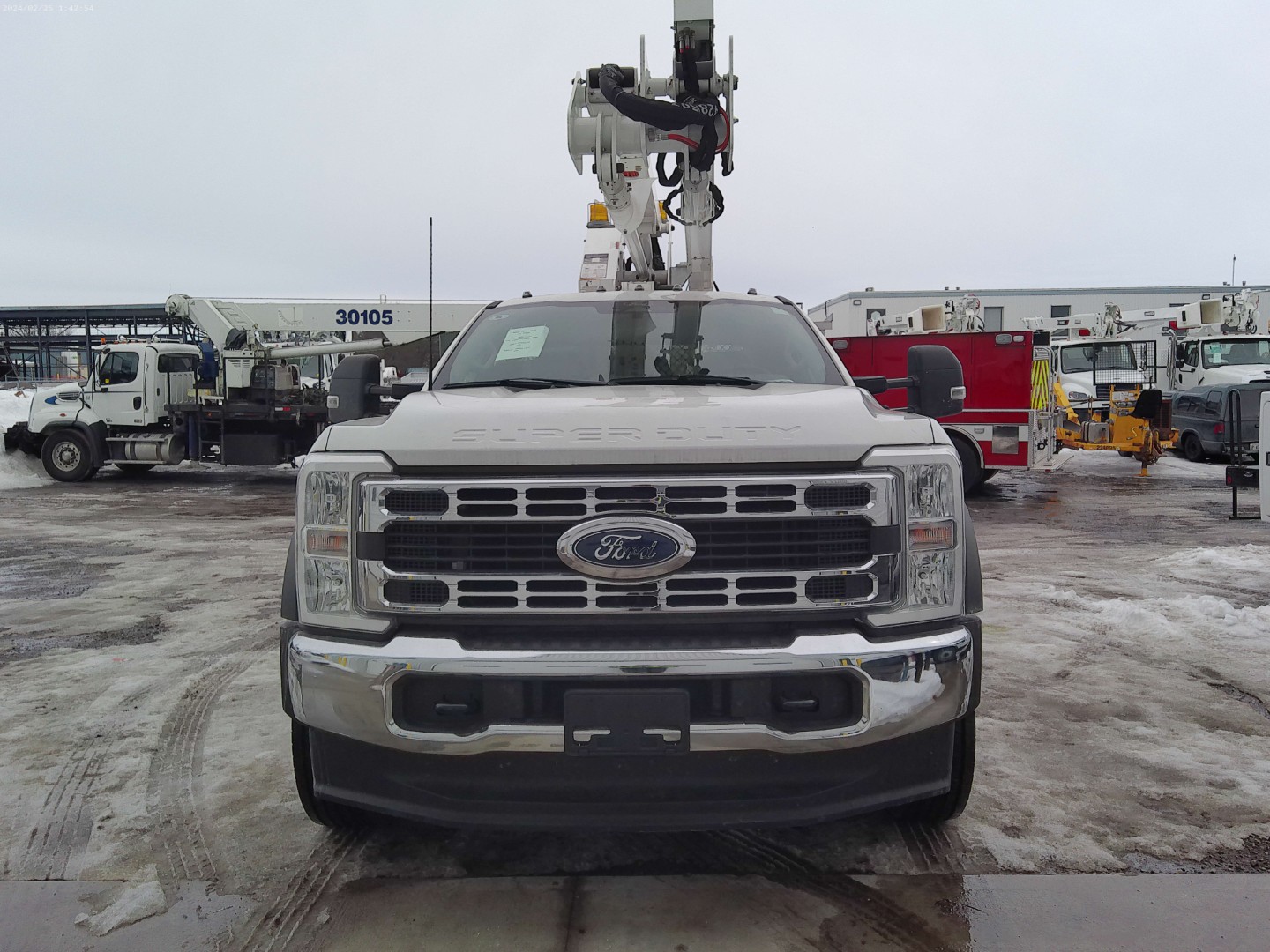

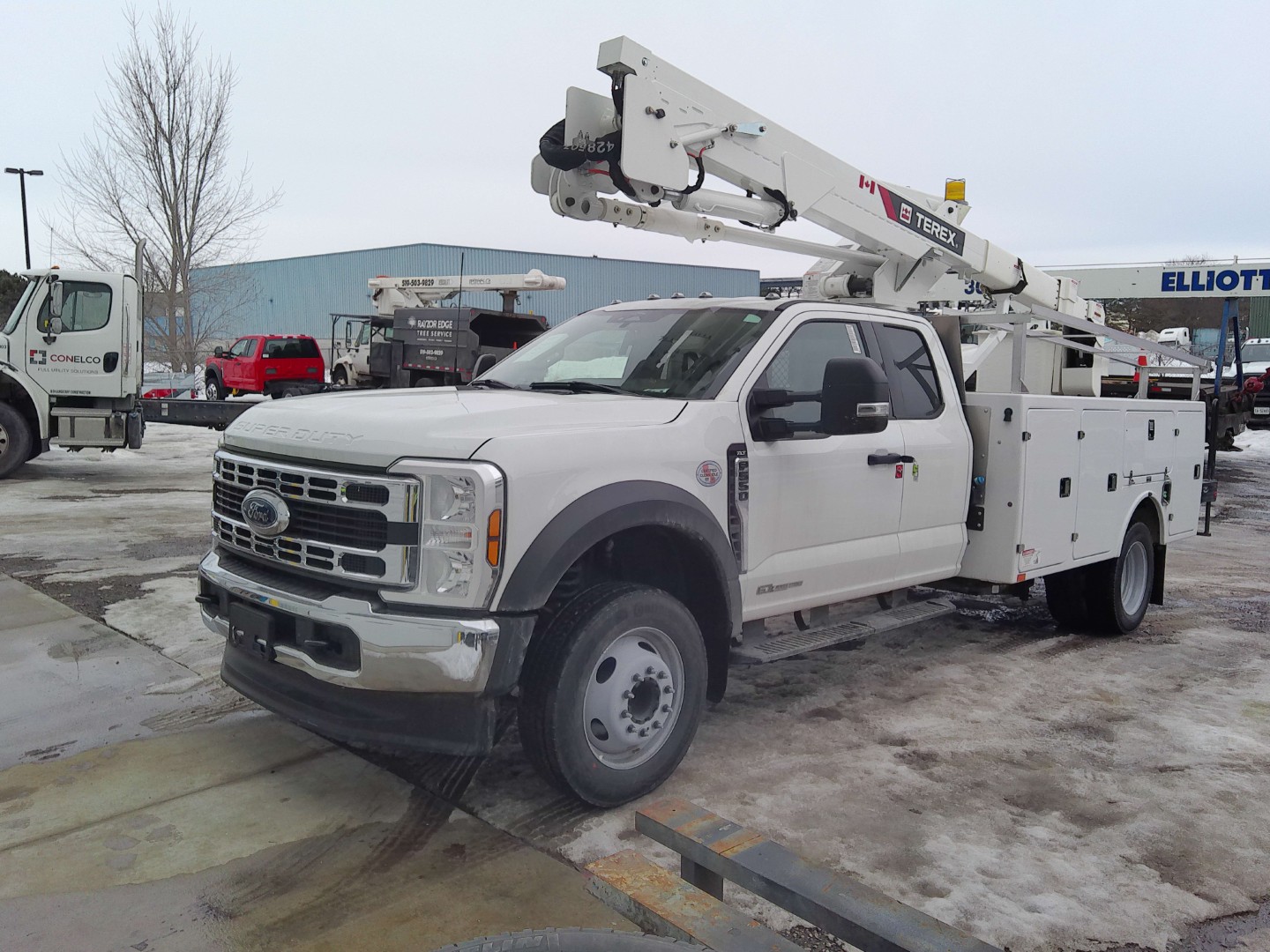

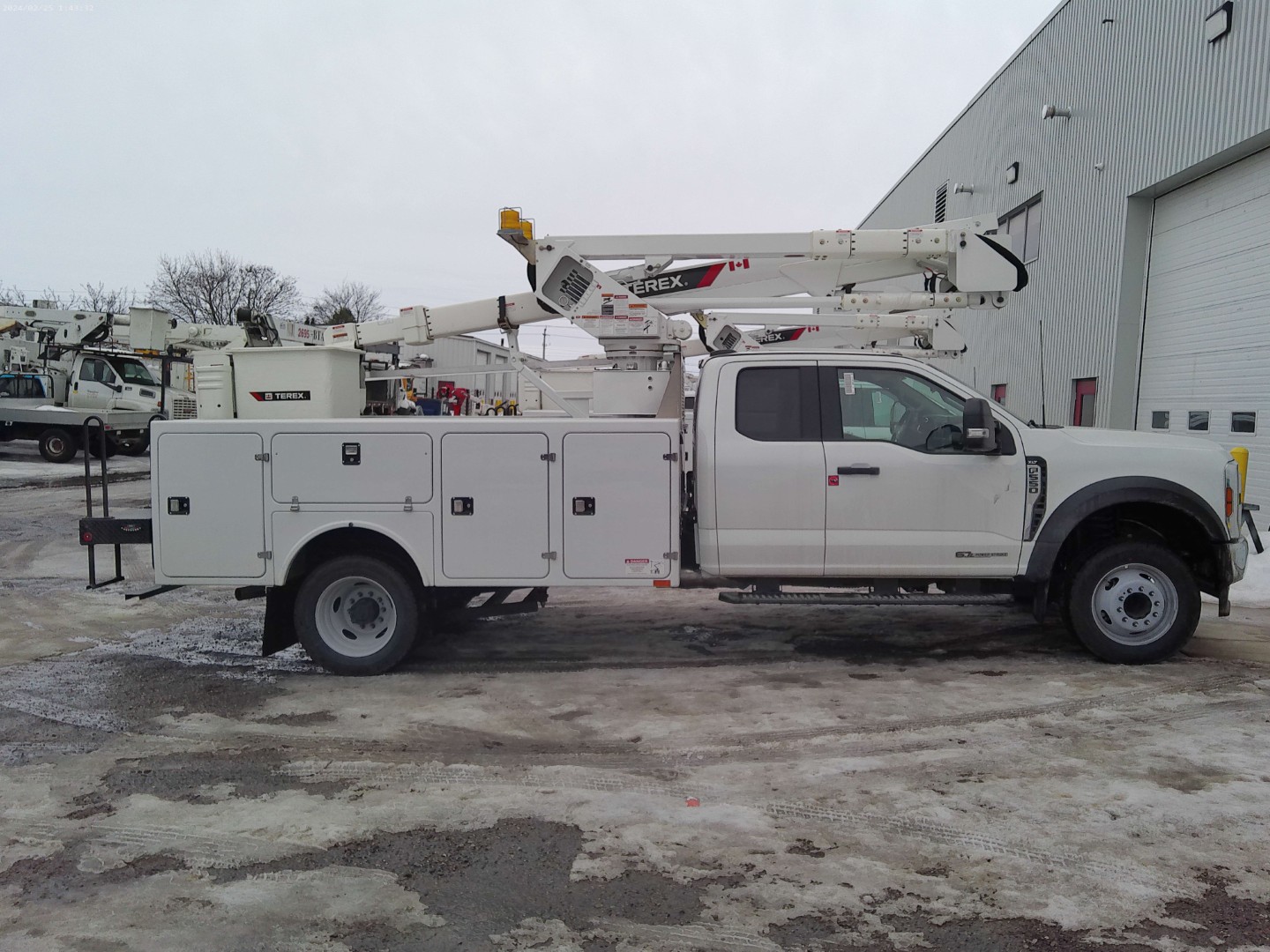

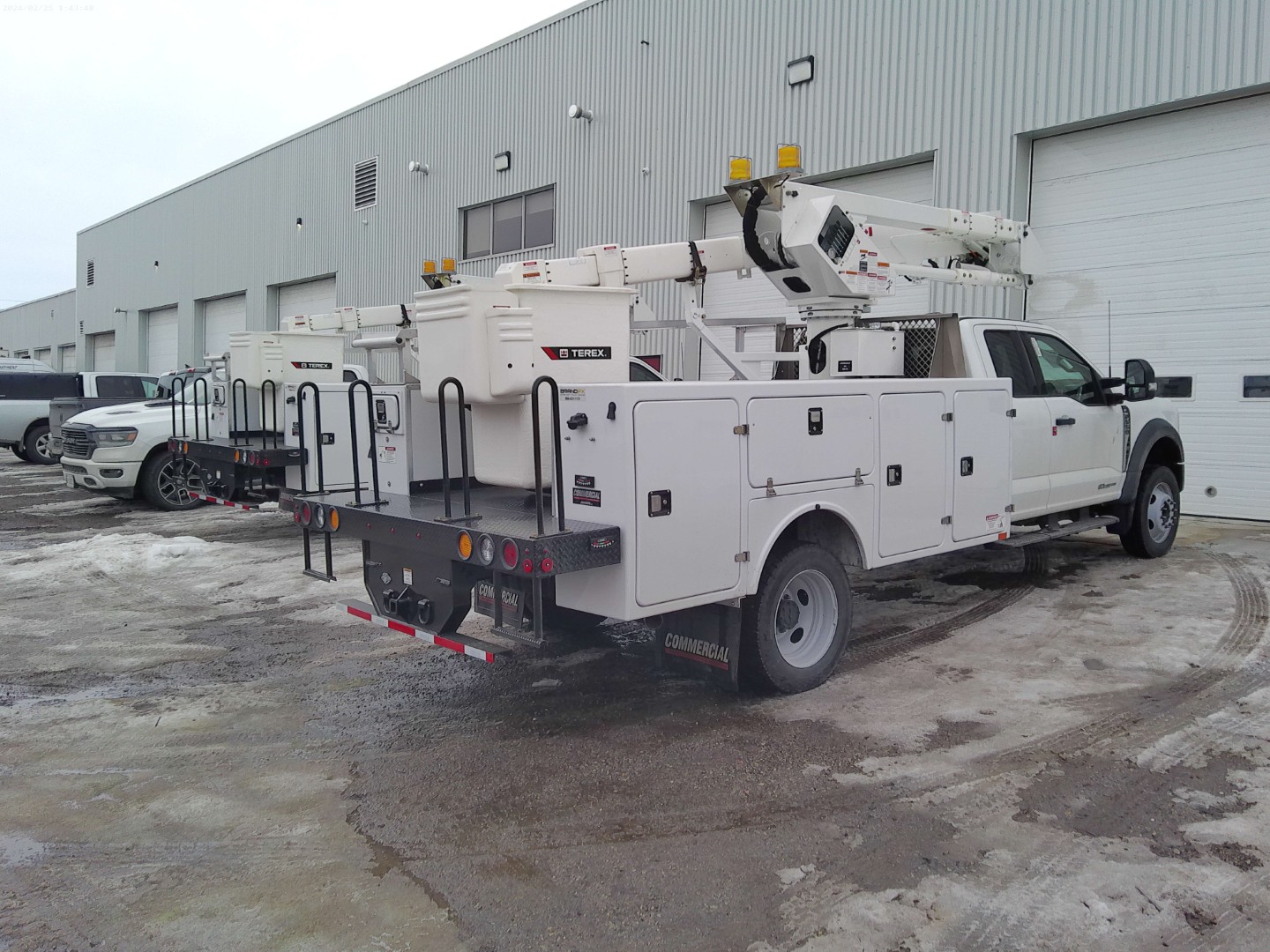

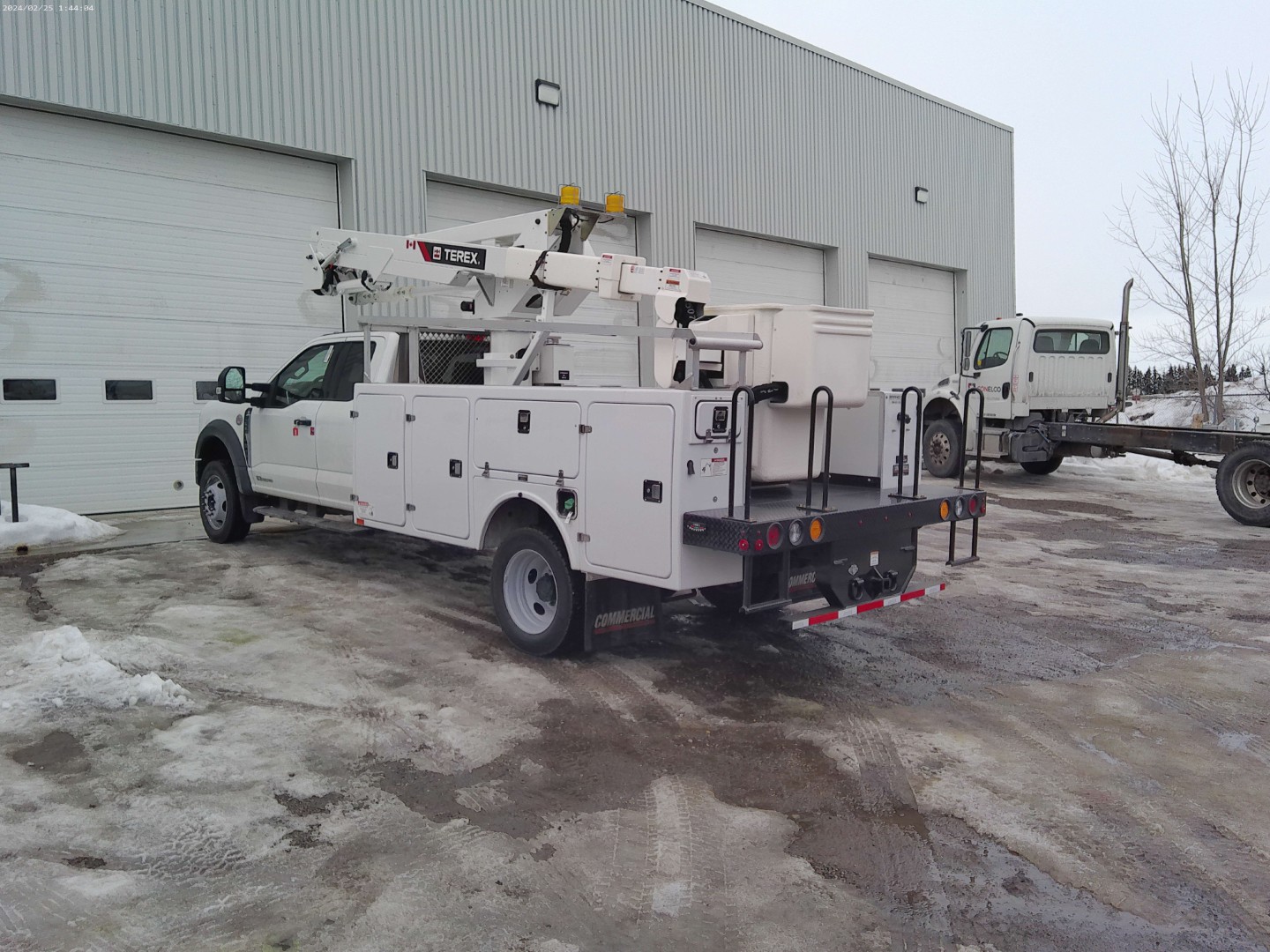

TEREX LT40 ON FORD F550

The Terex Hi-Ranger LT trouble truck features a simple compact design for easy maneuverability. The LT is typically mounted on a Class 5 truck chassis offering 29 feet of side reach and a maximum platform capacity of 400 lbs. The LT40 is available with an end-mount boom tip configuration and Category ‘C’ rating per ANSI A92.2.

SPECIFICATIONS

• Working height of 45.6 feet (13.8 meters)
• Horizontal side reach of 29.4 feet (9 meters) with outriggers
• Maximum platform capacity of 400 pounds (181 kg)
• Category ‘C’ 46 kV Rating Per ANSI A92.2
• Full Pressure Controls on Side of Platform
• Platform Tilt Control at Upper and Lower Controls
• Platform Rotation at Upper Controls
• Hydraulic Platform Leveling

LINE BODY

• Brand FX 108” Fiberglass Body

CHASSIS

• Ford F550 4×4 Super Cab
• 7L 4V OHV Power Stroke V8 Turbo Diesel
• TorqShift 10-Speed Automatic
• GVWR: 8,845 kgs (19,500 lbs)
• Extra Heavy-Duty Front-End Suspension – 7,500 GAWR
