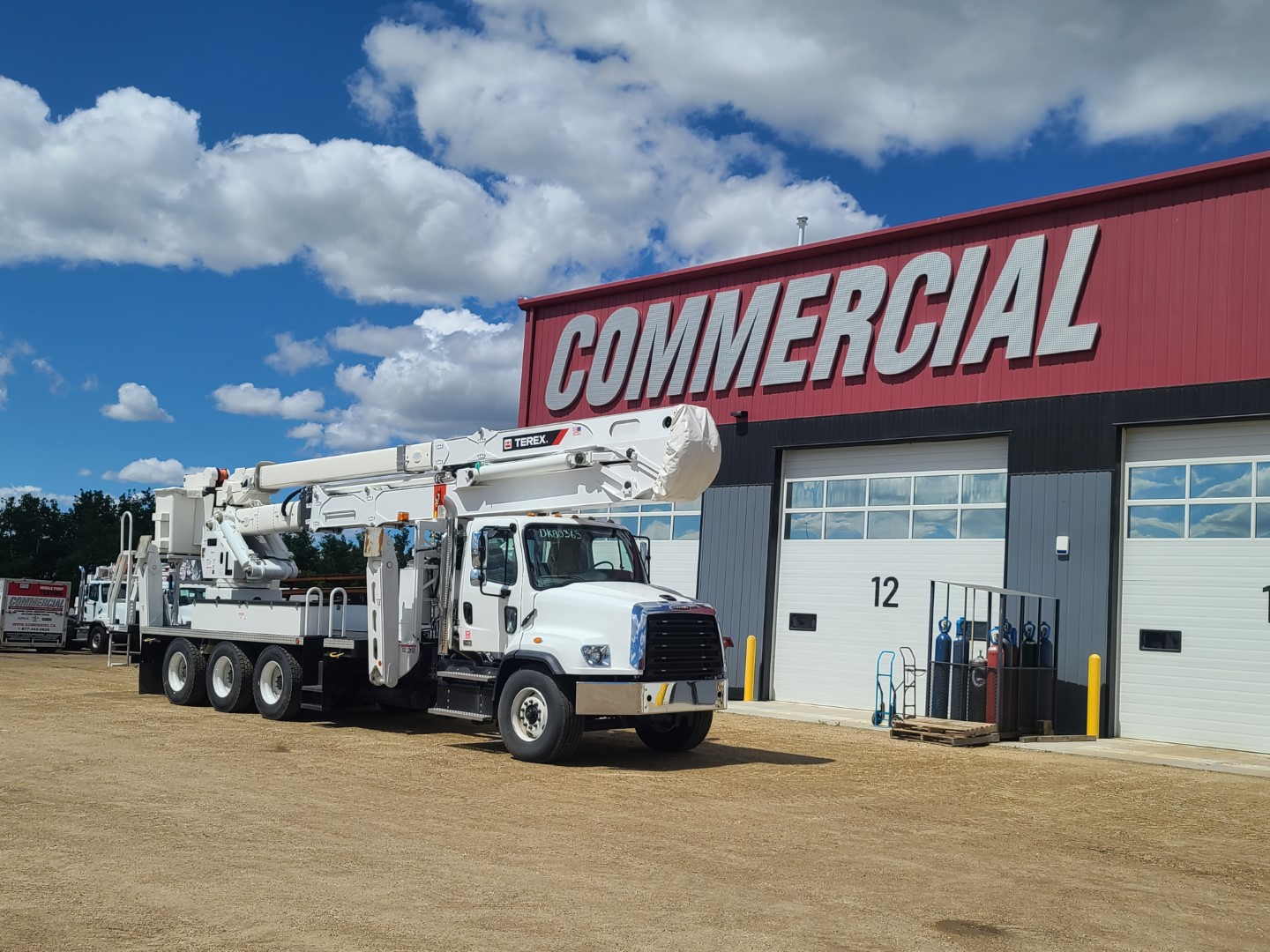

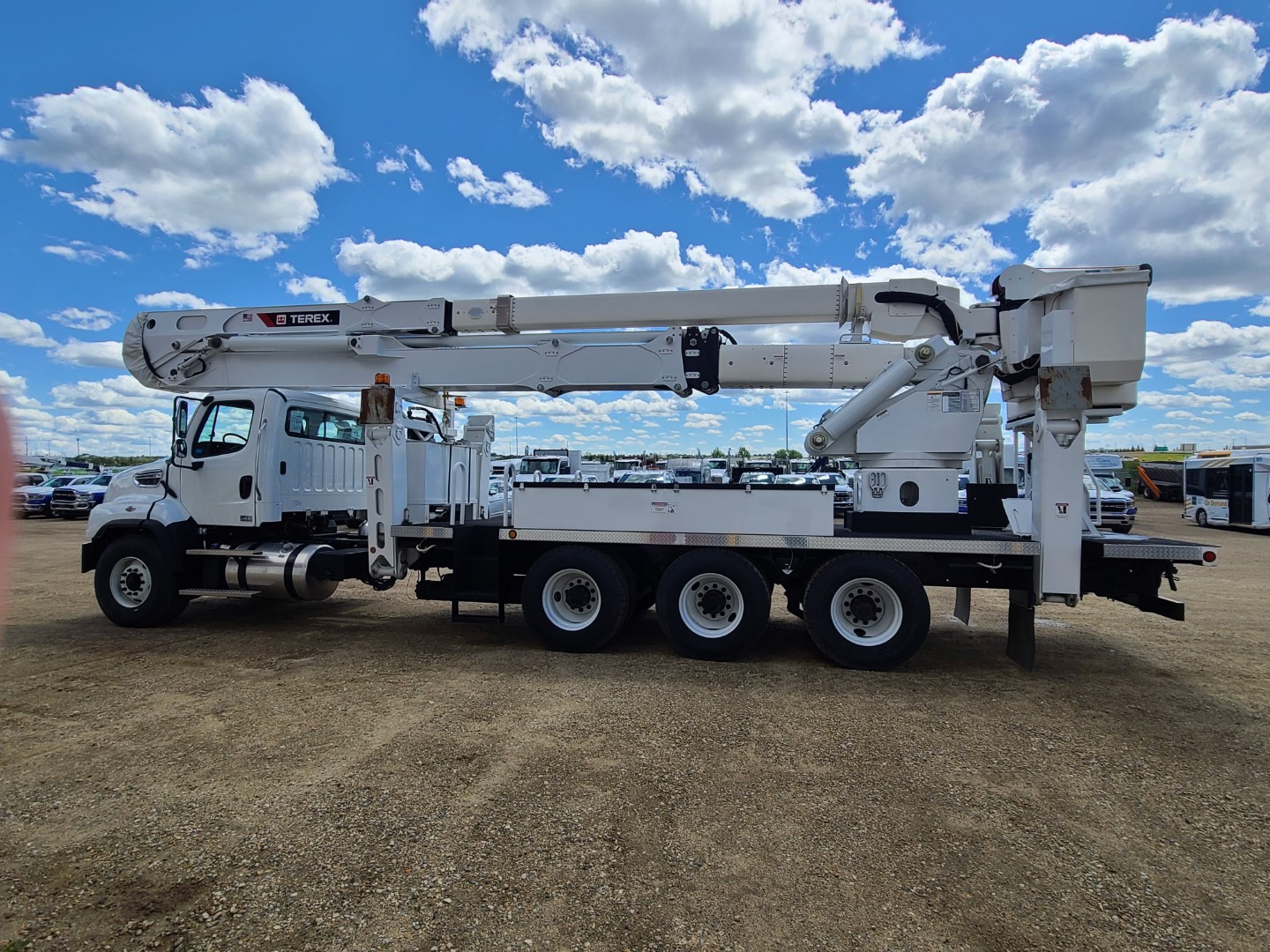

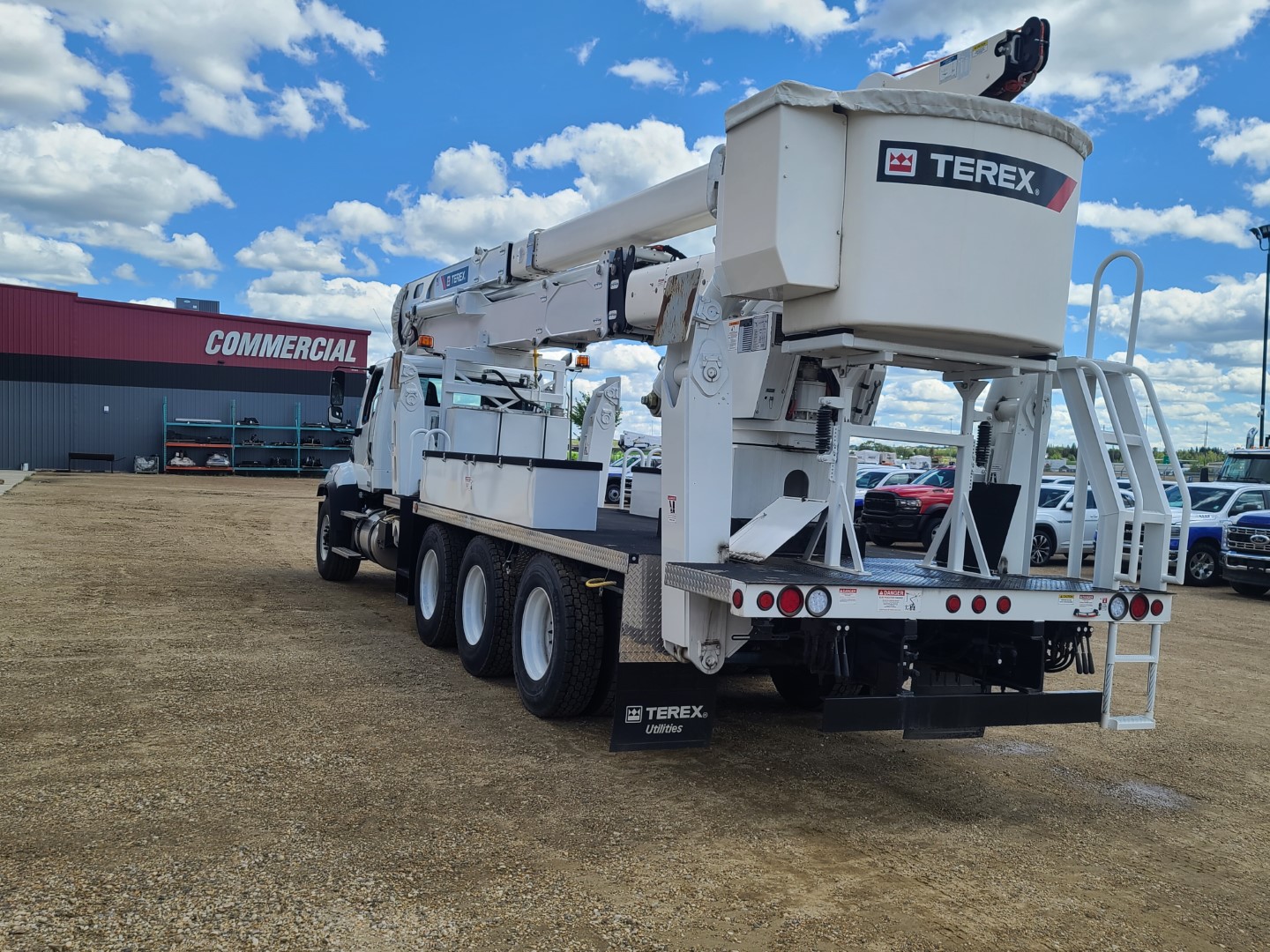

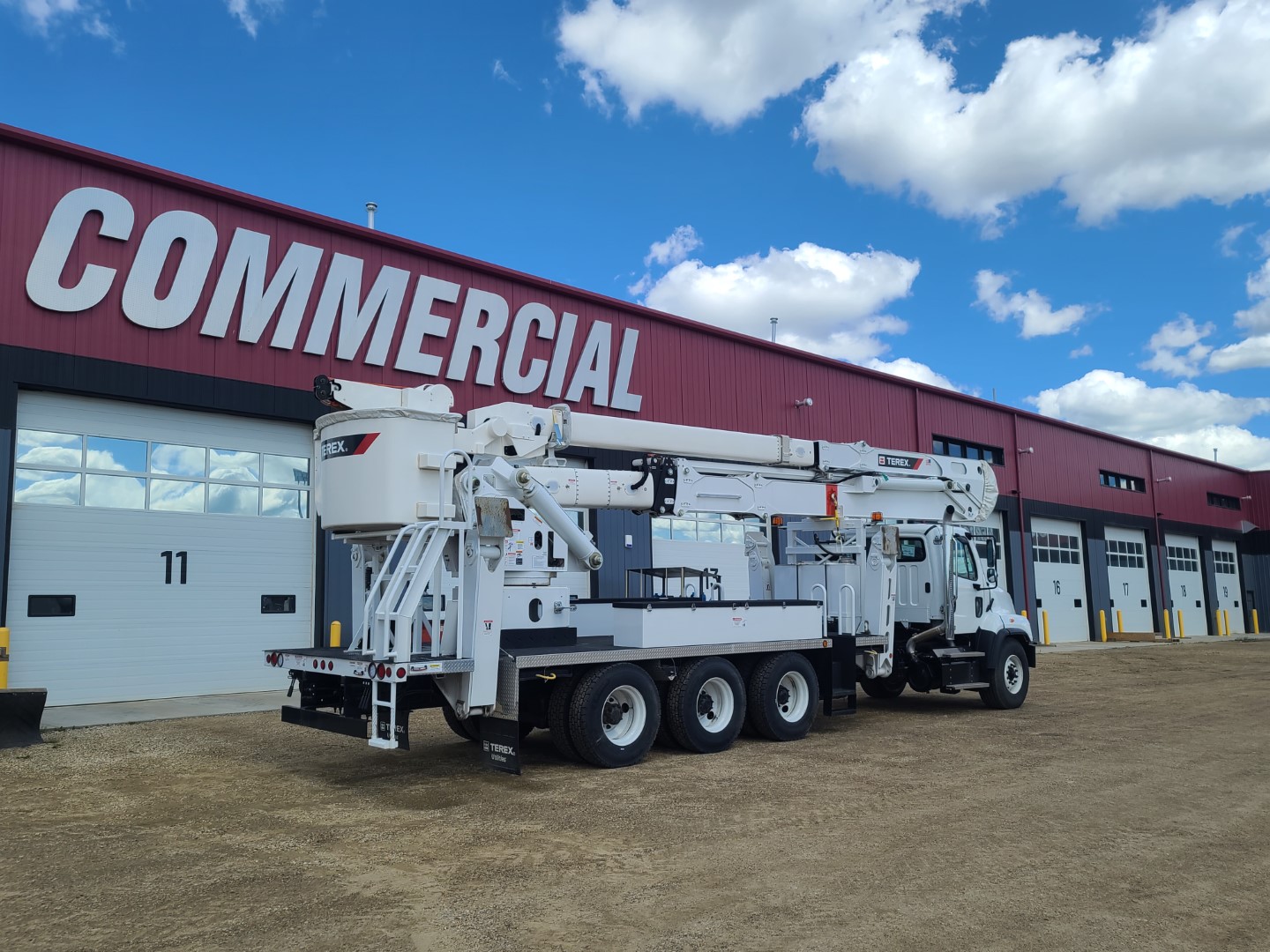

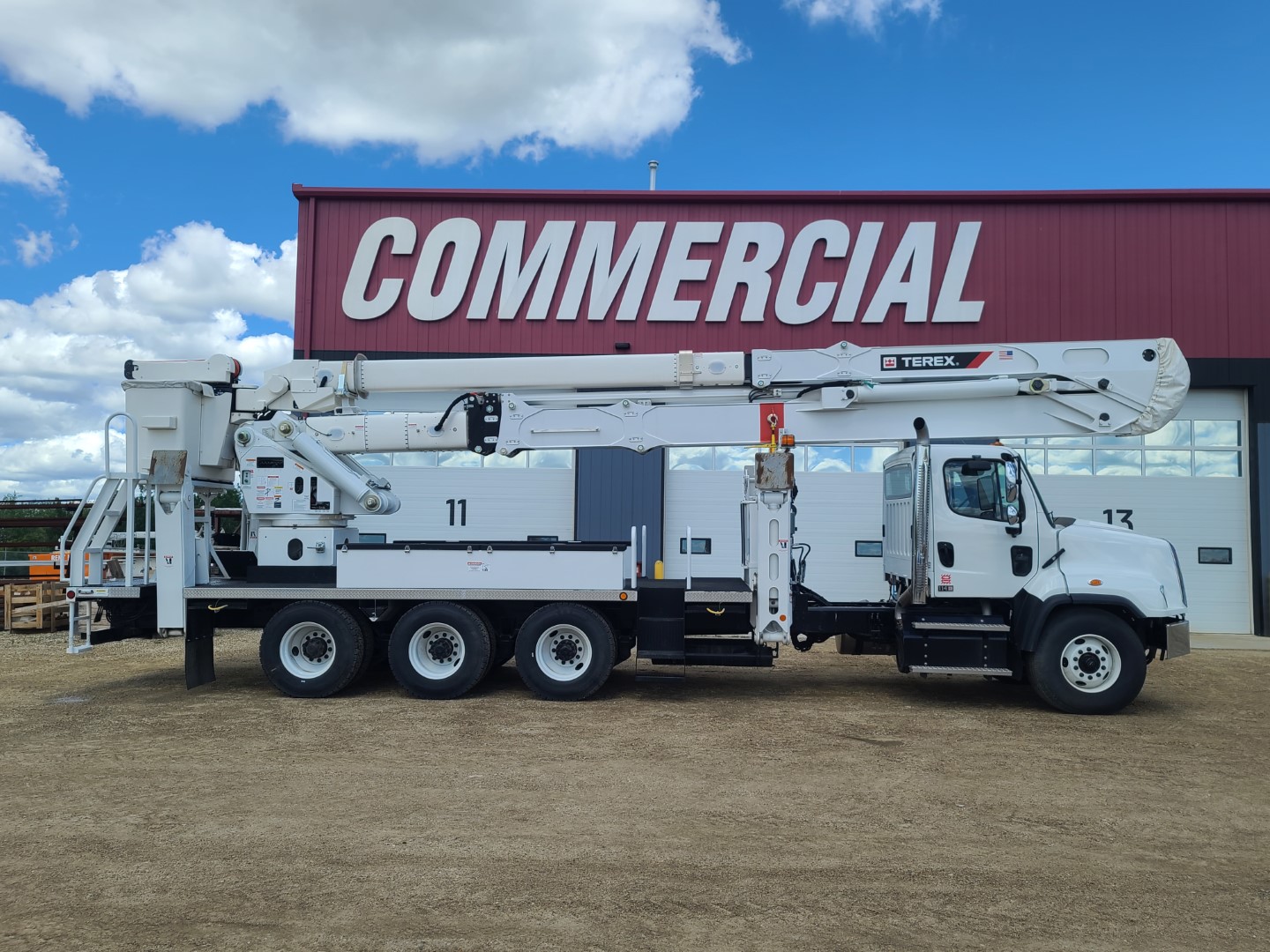

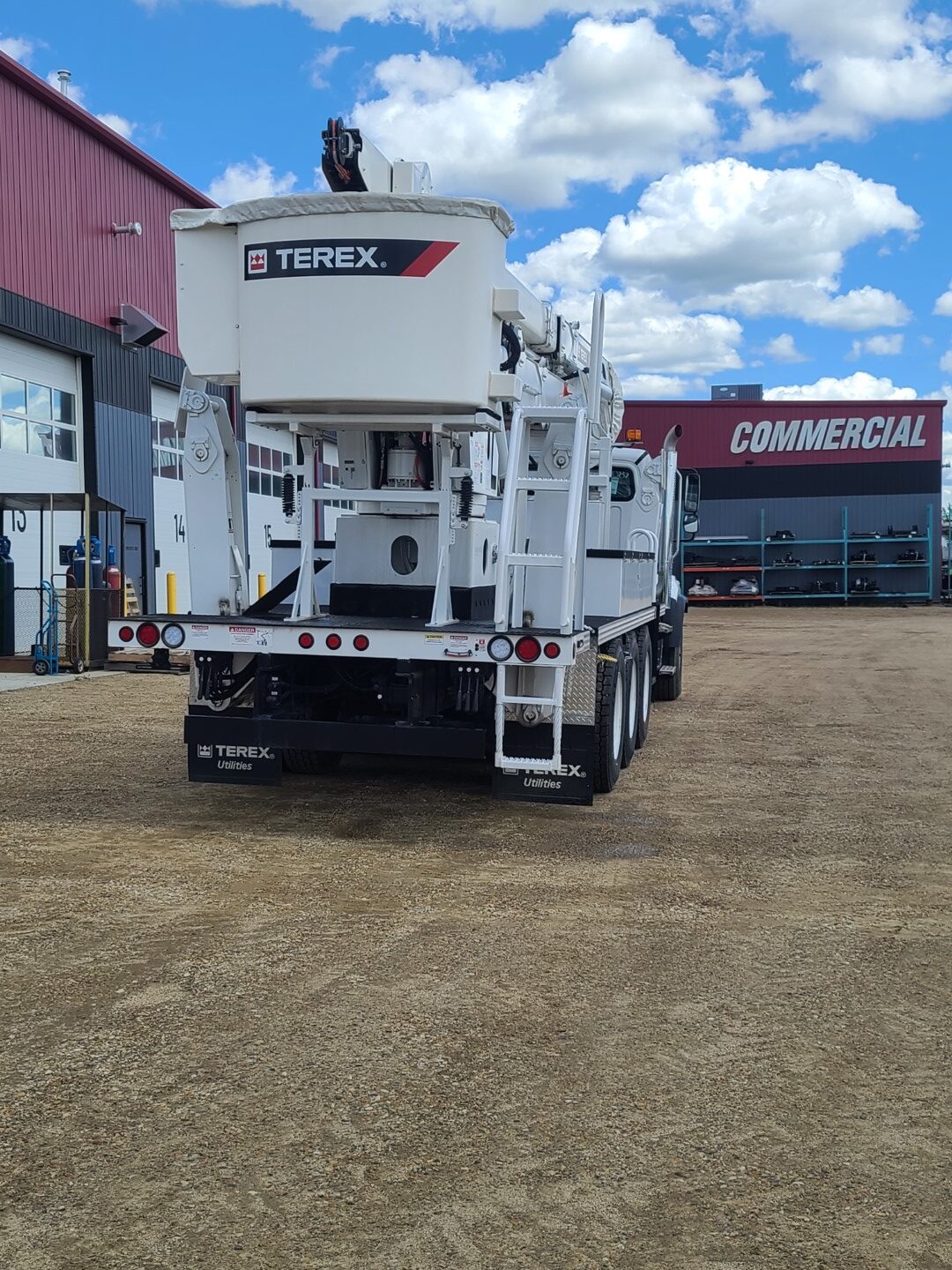

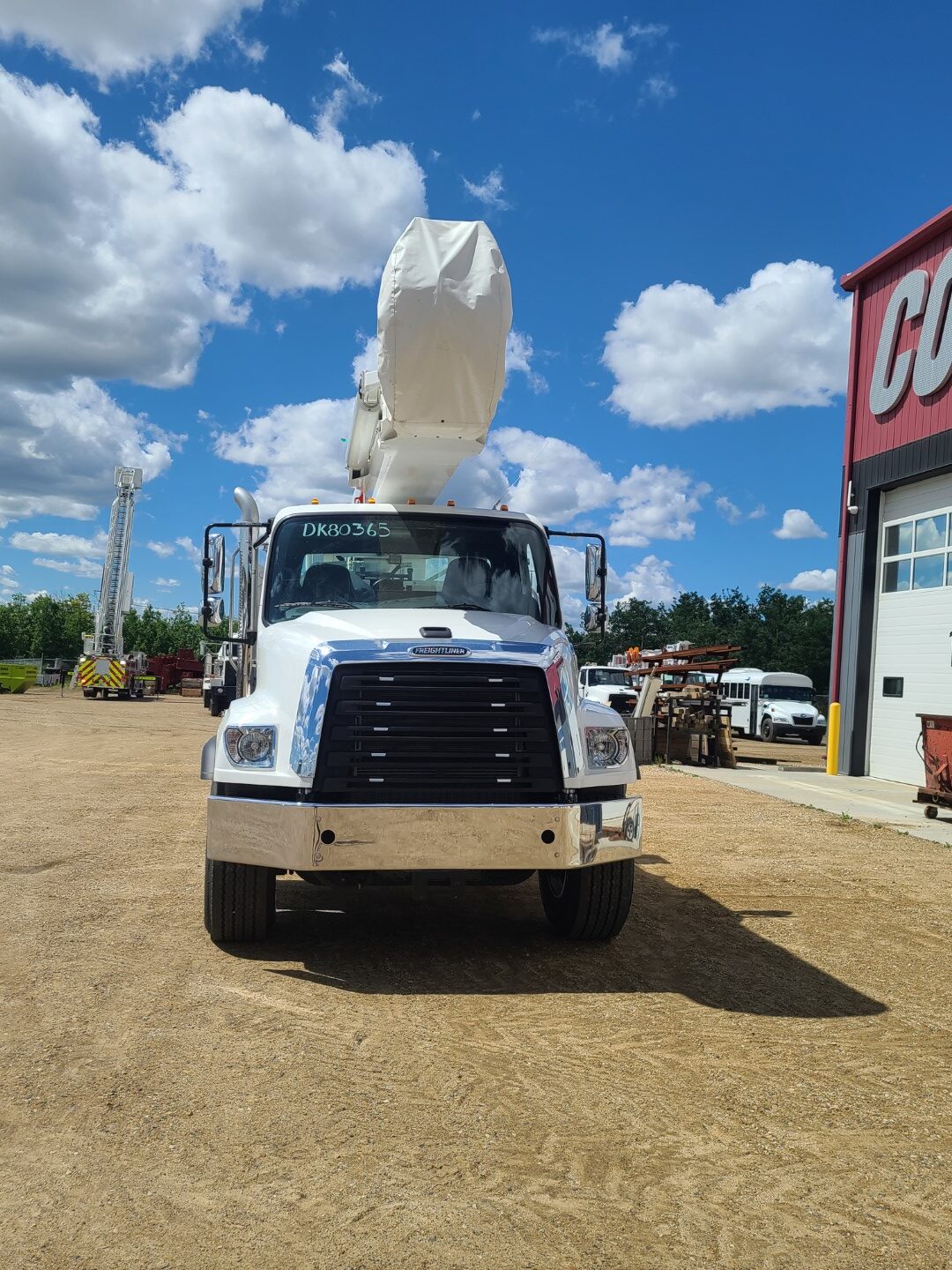

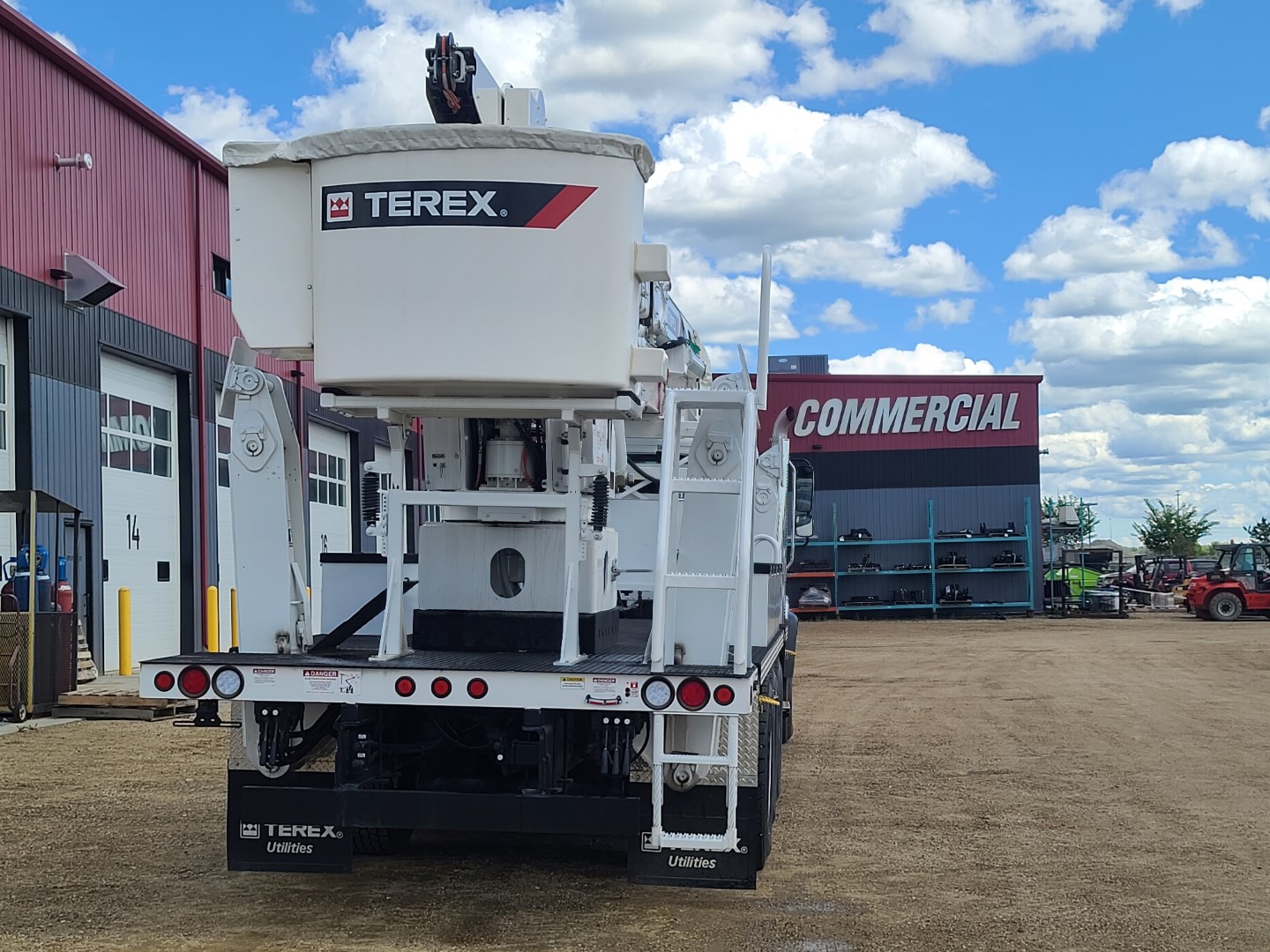

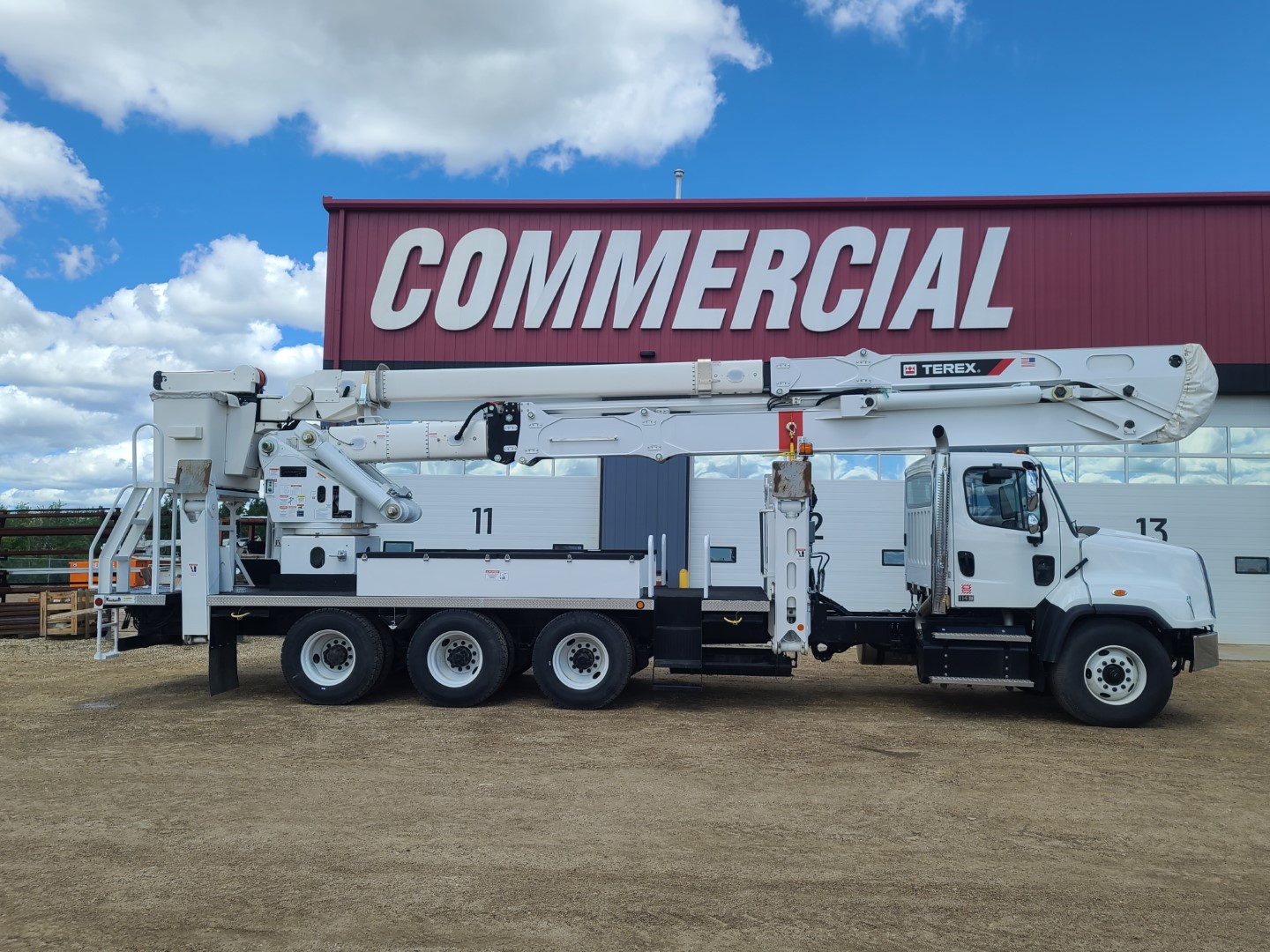

Terex TM 125 on Freightliner 114SD

The Terex Hi-Ranger™ TM125 is a line of material handling transmission aerial devices , specially designed to meet the heavy-duty demands of line crews. The TM Series are engineered with upper and lower fiberglass inserts, upper and lower boom extension, along with the smooth operation that is characteristic of all Hi-Rangers.

SPECIFICATIONS

• Key Features
• Working height of 125 feet (38.1 m)
• Horizontal side reach of 52 feet (15.9 m)
• Platform capacity of 800 pounds (363 kg)
• Category “A” Rating Per ANSI A92.2
• Bi-Axial Epoxy Resin, Filament Wound Fiberglass Boom
• Continuous Unrestricted Planetary Rotation
• Dual Lower and Upper Boom Cylinders
• Boom Interlock
• Moving Outrigger Alarm

CHASSIS

• Freightliner 114 SD Tri-drive
• Cummins X12 455 HP @ 1900 RPM, 1550 LB-FT @ 1000 RPM, 2000 GOV RPM
• Allison 4500 RDS Automatic Transmission
• GVWC 69000.0 lbs
• GCW 89000.0 lbs
• Driver Controlled Traction Differential (Both Tandem Rear Axles)
• Driver Controlled Interaxle Lock Valve (Forward-Rear and Rear-Rear Axle Valve)
